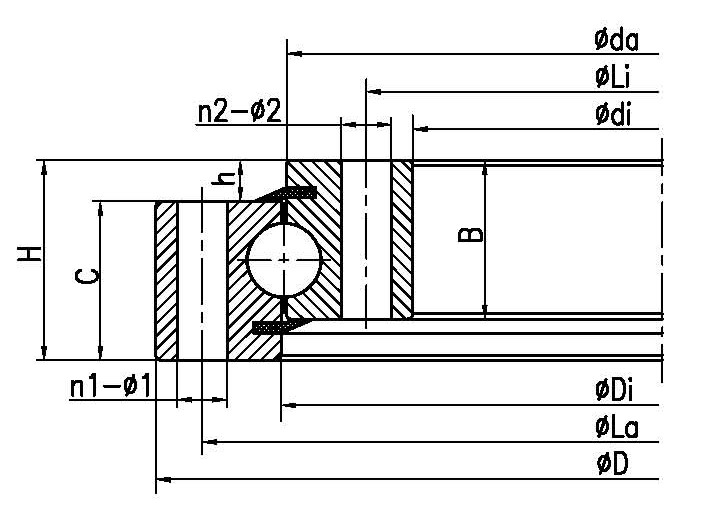

| INA 型號 | Rothe Erde 型號 | LYC 型號 | TG 型號 | 外形尺寸(mm) | 安裝尺寸(mm) | 結構尺寸(mm) | 齒參數(shù)(mm) | 額定軸向靜負荷(KN) | 重量(KG) | | Da | D | di | H | La | Li | n1 | n2 | φ1 | φ2 | D1 | d | b | h | B | C | Di | da | m | z | do | x |
| |
|
|
|
| 170 | 70 | 40 | 148 | 90 | 6 | 6 | φ9 | M8 | | | | 5 | 35 | 35 | 121.5 | 118.5 | | | | | | 4.37 |
| |
|
|
|
| 234 | 124.5 | 25 | 214 | 144.5 | 24 | 19 | φ11 | φ11 | | | | | 25 | 25 | 180 | 178 | | | | | 140 | 5.4 |
| VU 140179 |
|
|
|
| 234 | 124.5 | 35 | 214 | 144.5 | 12 | 12 | 11 | 11 | | | | 5 | 30 | 30 | 178 | 180 | | | | | 220 | 7 |
| |
|
|
|
| 234 | 124.5 | 35 | 214 | 144.5 | 24 | 20 | φ11 | φ11 | | | | 5 | 30 | 30 | 180.5 | 177.5 | | | | | 200 | 7 |
| |
|
|
E.318.22.00.D.1 |
| 300 | 138 | 46 | 270 | 170 | 6 | 6 | φ13.5 | φ13.5 | | | | 5 | 41 | 41 | 220 | 218 | | | | | 350 | 14.34 |
| VU 200220 |
|
|
E.318.22.00.D.1 |
| 302 | 138 | 46 | 270 | 170 | 10 | 10 | 18 | 18 | | | | 5 | 41 | 41 | 219 | 221 | | | | | 420 | 16 |
| VU200220 |
|
|
E.318.15.01.AA.LM |
| 302 | 140 | 46 | 270 | 170 | 10 | 10 | φ18 | M16 | | | | 5 | 41 | 41 | 223 | 221 | | | | | 435 | 18.5 |
| |
|
|
|
| 312 | 145.14 | 50 | 270 | 175 | 14 | 16 | M15.88 | M15.88 | | | | 6 | 44 | 44 | 220.86 | 224.15 | | | | | 350 | 18.55 |
| |
|
|
|
| 240 | 160 | 38 | | | | | | | | | | 5 | 33 | 33 | 201 | 199 | | | | | 300 | 6.3 |
| |
|
|
|
| 329 | 190 | 45 | 305 | 215 | 16 | 16 | φ14 | φ14 | 328 | 192 | | 1 | 44 | 44 | 261.5 | 258.5 | | | | | 520 | 15.8 |
| |
|
|
|
| 329 | 190 | 45 | 305 | 215 | 16 | 16 | φ14 | φ14 | 328 | 192 | | 1 | 44 | 44 | 258 | 256 | | | | | 480 | 16.2 |
| |
|
|
|
| 326 | 191 | 46 | 305 | 215 | 8 | 8 | M8 | M8 | | | | 5 | 41 | 41 | 261 | 259 | | | | | 280 | 16.3 |
| |
|
|
|
| 326 | 191 | 46 | 305 | 215 | 20 | 20 | φ14 | φ14 | | | | 5 | 41 | 41 | 261 | 259 | | | | | 280 | 15.1 |
| |
|
|
|
| 329 | 191 | 45 | 305 | 215 | 20 | 20 | φ14 | φ14 | 327 | 193 | | 4 | 41 | 41 | 258 | 256 | | | | | 480 | 15 |
| VU.200.260 |
|
|
E.403.22.05.AA.LM |
| 329 | 191 | 46 | 305 | 215 | 20 | 20 | φ14 | φ14 | | 193 | | 5 | 41 | 41 | 263 | 261 | | | | | 420 | 14.8 |
| VU 200260 |
|
|
E.403.22.01.CC.LM |
| 326 | 191 | 46 | 305 | 215 | 20 | 20 | 14 | 14 | | | | 5 | 41 | 41 | 259 | 261 | | | | | 500 | 15 |
| |
|
|
E.403.22.51.CC.LM |
| 328 | 192 | 45 | 305 | 215 | 16 | 16 | φ14 | φ14 | 328 | 192 | | | 45 | 45 | 262 | 258 | | | | | 540 | 18 |
| |
|
|
SD.300.20.00.D1 |
| 300 | 200 | 35 | 280 | 220 | 16 | 16 | M10 | M10 | | 200 | | 5 | 30 | 30 | 251 | 249 | | | | | 200 | 7.1 |
| |
|
|
|
| 435 | 228 | 78 | 394.5 | 277 | 8 | 4 | 1/2 | 1/2 | | | | 18 | 60 | 65 | 335 | 332 | | | | | 830 | 49.6 |
| |
|
|
|
| 403.5 | 235 | 55 | 358 | 259 | 14 | 12 | φ13 | φ13 | 380 | | | 8 | 45 | 47 | 310.5 | 306.5 | | | | | 550 | 26.6 |
| |
|
LY-Q020 |
E.403.22.00.D.1 |
| 440 | 240 | 55 | 400 | 280 | 18 | 18 | M20-7H | 22 | | | | 5 | 50 | 50 | 342 | 340 | | | | | 782 | 34.7 |
| |
|
|
|
| 430 | 260 | 65 | 400 | 290 | 24 | 24 | φ14 | φ16 | | | | 12 | 53 | 53 | 348 | 342 | | | | | 820 | 32 |
| VU 140325 |
|
|
|
| 380 | 270 | 35 | 360 | 290 | 24 | 24 | 11 | 11 | | | | 5 | 30 | 30 | 324 | 326 | | | | | 460 | 12 |
| |
|
|
E.403.22.00.D.1 |
| 485 | 275 | 55 | 453 | 307 | 8 | 8 | M16 | M16 | | | | 5 | 50 | 50 | 382 | 378 | | | | | 1010 | 45.4 |
| |
|
|
|
| 485 | 275 | 55 | 453 | 307 | 8 | 8 | φ18 | φ18 | | | | 5 | 50 | 50 | 382 | 378 | | | | | 1010 | 45.4 |
| VU 250380 |
|
|
|
| 485 | 275 | 55 | 453 | 307 | 16 | 16 | 18 | 18 | | | | 5 | 50 | 50 | 379 | 381 | | | | | 840 | 45 |
| |
|
LY-Q007 |
|
| 485 | 275 | 55 | 453 | 307 | 16 | 16 | 18 | M16 | | | | 5 | 50 | 50 | 386 | 381 | | | | | 872 | 43.7 |
| |
|
LY-Q007K |
|
| 485 | 275 | 55 | 453 | 307 | 16 | 16 | 18 | 18 | | | | 5 | 50 | 50 | 386 | 381 | | | | | 872 | 43.7 |
| |
|
|
E.535.25.00.D.1 |
| 402 | 278 | 44 | 383 | 298 | 12 | 12 | φ9 | M8 | | | | 6 | 38 | 38 | 342 | 338 | | | | | 470 | 17.3 |
| |
060.22.0370.301.11.1504 |
|
|
| 456 | 289 | 59 | 425 | 320 | 16 | 16 | M16 | M16 | | | | 9 | 50 | 50 | 369 | 371 | | | | | 940 | 35 |
|
